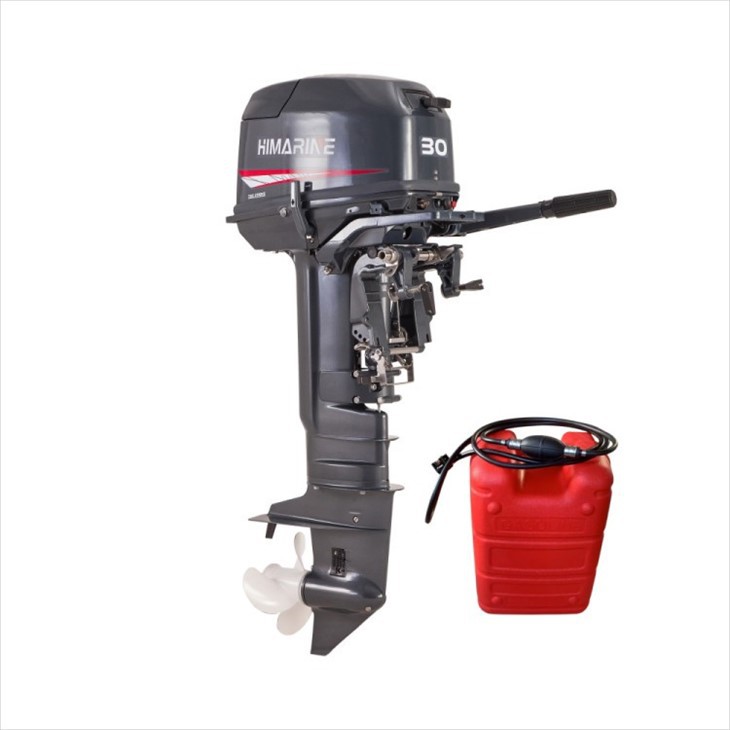

Outboard Motor 2 Stroke 30HP
An outboard motor is a propulsion system used for boats, consisting of a self-contained unit that includes an engine, gearbox, and propeller. A 2-stroke outboard motor is a type of engine that requires a mixture of fuel and oil to run.
- Product Introduction
|
SPECIFICATIONS |
|
|
Model (2-stroke) |
HMT30 |
|
Demension |
Overall Length: 843mm |
|
Net Weight |
Short Shaft: 53 kg Long Shaft: 54.5 kg |
|
Gross Weight |
Short Shaft: 63 kg Long Shaft: 65 kg |
|
Full Throttle Operating Range |
4500-5500 r/m |
|
Maximum Output |
22 KW |
|
Idling Speed |
1100±50 r/m |
|
Displacement |
496 cc |
|
Bore&Stroke |
72*61mm |
|
Ignition Systerm |
CDI |
|
Spark Plug |
B7HS-10 |
|
Spark Plug Gap |
0.9-1.0 mm |
|
Control Systerm |
Tiller Handle |
|
Starting Systerm |
Manual |
|
Starting Carburetor Systerm |
Choke Valve |
|
Gear Position |
Forward-Neutral-Reverse |
|
Gear Transmission Ratio |
2.08 |
|
Trim and Tilt Systerm |
Manual Tilt |
|
Recommended Fuel |
Unlead Gasoline |
|
Recommended Engine Oil |
2-Stroke Outboard Motor Engine Oil |
|
Gear Oil |
0.320L |
|
Fuel Tanks Capacity |
24L |
|
Fuel Oil Ratio |
50:1 |
|
Package Size |
135*73*45 cm |
What Is Outboard Motor 2 Stroke 30HP
An outboard motor is a propulsion system used for boats, consisting of a self-contained unit that includes an engine, gearbox, and propeller. A 2-stroke outboard motor is a type of engine that requires a mixture of fuel and oil to run. The 30HP rating indicates the power output of the motor, with higher numbers indicating greater power. This particular outboard motor would be suitable for smaller boats and watercraft.
