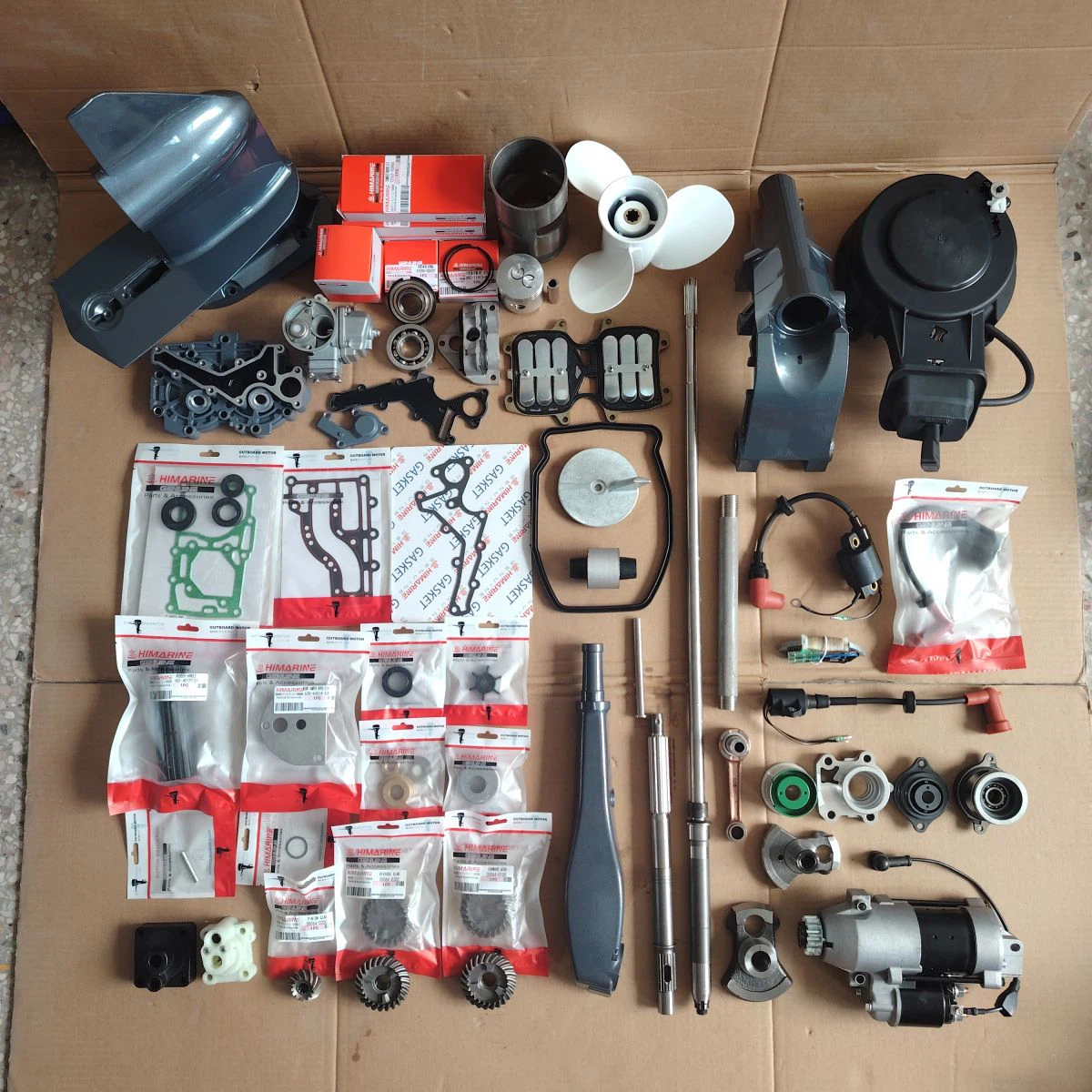

Himarine Outboard Motor Parts
Jul 23, 2024| HIMARINE Outboard Motor Parts
Please Kindly advice the OEM Parts,Thanks
Product drawing
Basic feature
| 6B4-42651-00 | Hook | 6E7-11631-00-97 | Piston Kit(With Pin ,Clip) |

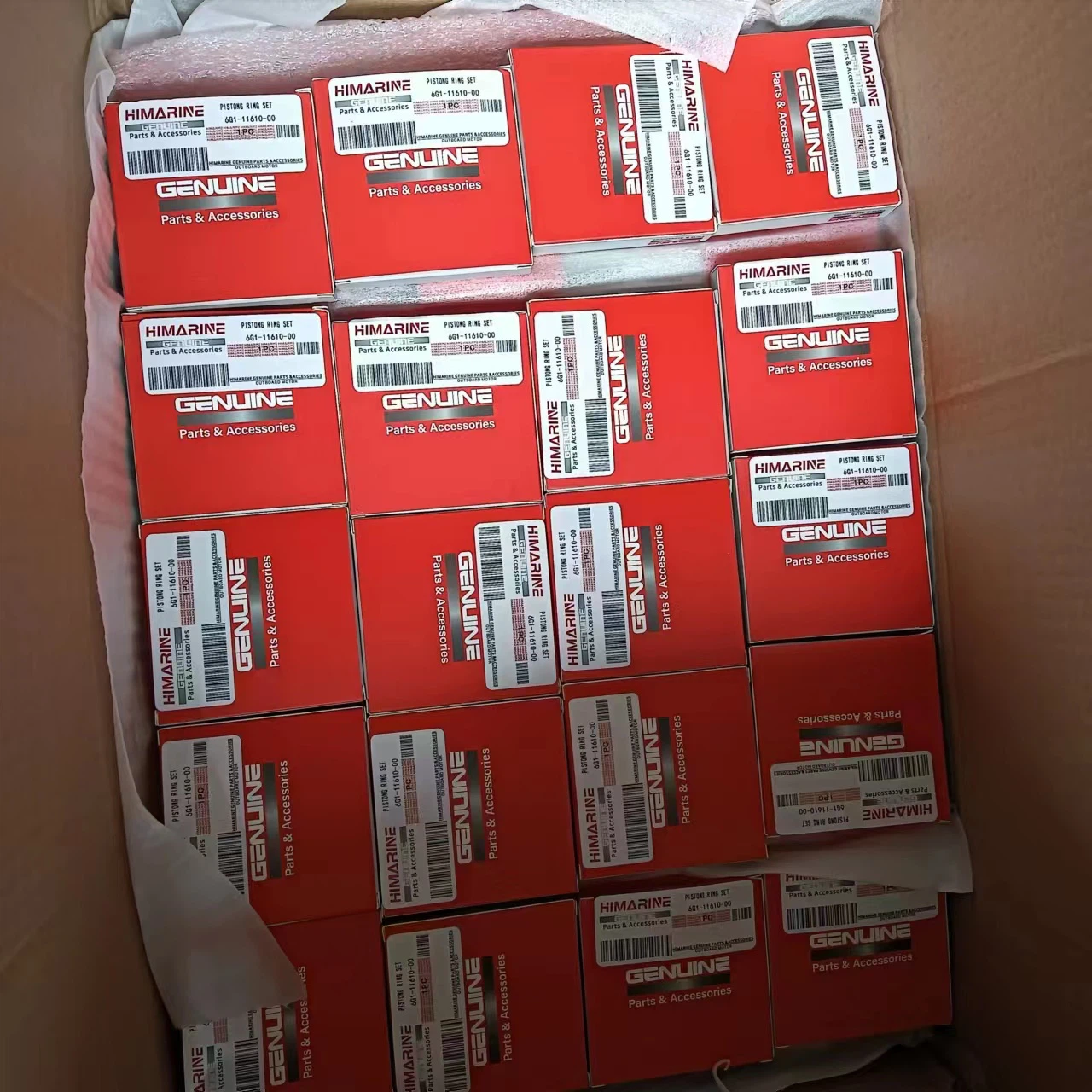

| 6B4-42674-00 | Holder Clamp Band | 682-11610-01 | Piston Ring |
| 650-14485-03 | Pipe Joint | 93110-23M00 | Oil Seal |
| 90445-07M08 | Hose(L220) | 63V-11445-00 | Spacer |
| 682-11325-00 | Anode | 63V-13610-00 | Reed Valve Assy |
| 63V-41111-00-1S | Inner Cover Exhaust | 6B4-41271-01 | Knob Choke |
| 6B4-41112-A0 | Gasket Exhaust Inner Cover | 6B4-41273-00 | Grommet |
| 63V-41112-A0 | Gasket Exhaust Inner Cover | 6B4-41262-00 | Joint Choke Lever |
| 6B4-11111-00-1S | Head Cylinder 1 | 63V-14301-00 | Carburetor Assy |
| 63V-11181-A2 | Gasket Cylinder Head1 | 682-14301-00 | Carburetor Assy |
| 6B4-11351-A1 | Gasket Cylinder | 6G1-24304-02 | Fuel Pipe Comp |
| 94702-00160 | Plug Spark ( B8HS-10) | 61N-24560-00 | Filter Assy |
| 6B4-11400-00 | Crankshaft Assy | 90445-09104 | Hose(L300) |
| 63V-11412-00 | Crank 1 | 90445-09M00 | Hose(L180) |
| 63V-11422-01 | Crank 2 | 63V-15714-00 | Drum Sheave |
| 63V-11432-02 | Crank 3 | 63V-15741-00 | Pawl Drive |
| 63V-11442-03 | Crank 4 | 63V-15713-00 | Spring Stater |
| 93306-205A1 | Bearing | 63V-15705-01 | Spring Drive Pawel |
| 93306-205U7 | Bearing | 63V-15767-01 | Spring |
| 93390-00029 | Bearing | 68T-15784-00 | Spring Return |
| 63V-11515-02 | Seal Labyrinth1 | 63V-15794-00 | Stopper |
| 682-11681-00 | Pin Crank1 | 6B4-85550-01 | Rotor Assy |
| 6K4-11651-00 | Rod Connecting | 6B4-85550-00 | Coil Pulser |
| 93310-620W5 | Bearing | 6B4-85520-00 | Coil Charge |
| 90209-20M23 | Washer | 63V-85520-00 | Coil Charge |

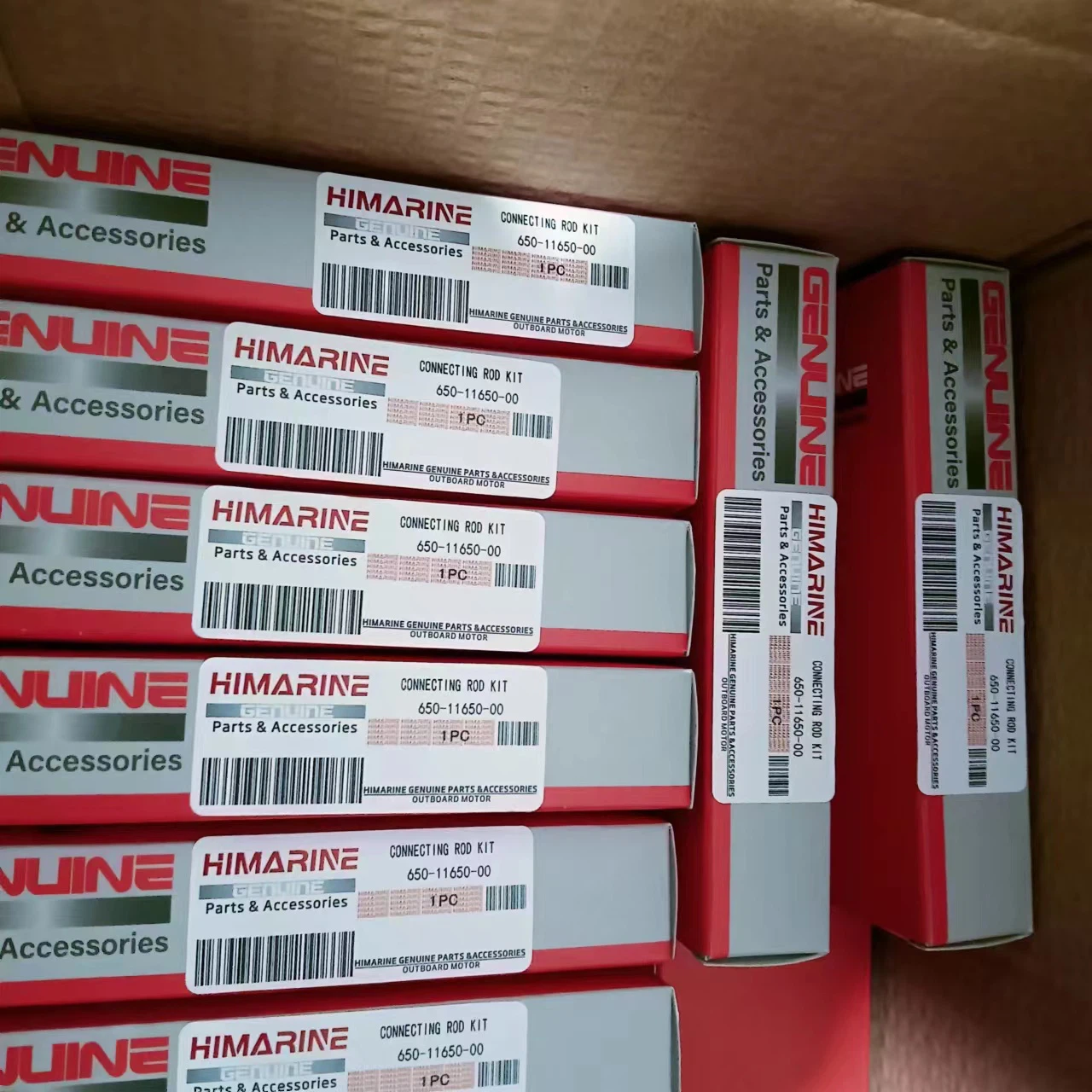

| 650-11650-00 | Conrod Kit | 90280-05013 | Key Woodruff |
| 90386-40M08 | Bush | 90170-12066 | Nut |
| 682-44514-01-94 | Mount Damper Upper Side | 6B4-85540-03 | CDI Nint Assy |
| 90101-08M30 | Bolt | 63V-85540-00 | CDI Nint Assy |
| 90185-08057 | Nut Self -Locking | 6B4-85570-00 | Ignition Coil Assy |
| 682-44522-01 | Seal | 63V-85570-00 | Ignition Coil Assy |
| 682-44521-01 | Seal | 663-82371-11 | Cap Plug |
| 682-44557-00 | Mount Damper Lower Front | 62E-8231X-00 | Terminal1 |
| 682-44555-00 | Mount Damper Lower Side | 6B4-42815-00-4D | Lever Clamp |
| 6B4-41137-00-CA | Guide Exhaust | 6B4-42816-00 | Lever Clamp |
| 682-45113-A2 | Gasket Upper Casing | 6B4-42716-00 | Rubber Seal1 |
| 682-45111-05-4D | Casing Upper | 6B4-42111-00-4D | Handle Steering |
| 6B4-41131-00-CA | Manifold Ext1 | 90381-35001 | Bush Solid |
| 682-41133-A0 | Gasket Exhaust Manifold | 90381-20001 | Bush Solid |
| 682-45126-01-CA | Plate Seal Damper | 6B4-42119-00 | Grip Steering Handle |
| 682-45127-00 | Seal | 6G1-42177-00 | Rubber Handle |
| 682-41116-00-CA | Protector | 90152-05011 | Screw Countersunk |
| 97095-06020 | Bolt | 6B4-42136-00 | Lever Throttle |
| 6B4-45501-00 | Drive Shaft Comp- Long | 6B4-26301-00 | Throttle Cable Assy |
| 626-45316-019 | Bushing Drive Shaft | 63V-14497-02 | Stay Throttle Wire |
| 93315-314V8 | Bearing | 6B4-44121-00 | Lever Shift Rod |
| 93101-20001 | Oil Seal | 61N-44146-00 | Connector Shift Rod |
| 683-44362-01 | Tube Water2 | 6B4-44143-00 | Rod Shift |
| 90280-03005 | Key Woodruff | 6B4-44111-00-4D | Handle Gear Shift |
| 6E7-45331-00-CA | Housing Bearing | 6J8-41262-00 | Joint Choke Lever |
| 683-45315-A0 | Packing Lower Casing | 682-43111-05-4D | Bracket Clamp1 |
| 682-44315-A0 | Gasket Water Pump | 682-43112-05-4D | Bracket Clamp2 |
| 682-44532-03 | Impeller | 90101-12013 | Bolt |
| 682-44322-41 | Insert Cartridge | 90502-10M07 | Spring Conical |
| 682-44300-40 | Housing Water Pumpassy | 682-43311-07-4D | Bracket Swivel |
| 6E7-45536-00 | Sleeve Drive Shaft | 90506-26M01 | Spring Tension |
| 90340-08002 | Plug Straight Screw | 663-43118-01-4D | Handle Transom Clamp |
| 90430-08020 | Gasket | 682-42521-00-94 | Shaft Steering Pivot |
| 6E7-44366-00 | Damper Water Seal2 | 90209-52M01 | Washer |
| 6B4-44147-00 | Boot Shift Rod | 682-42537-00 | Bushing Pivot Shaft |
| 90209-14011 | Washer | 90386-40M09 | Bush |
| 6E8-45587-10 | Shim(T:1.13Mm) | 93210-40M10 | O-Ring |
| 90201-15017 | Washer Plate | 90501-14M06 | Spring Compression |
| 6E7-45551-00 | Pinion | 650-45635-00 | Plunger Shift |
| 63V-45551-00 | Pinion | 683-45611-00 | Shaft Propeller |
| 90170-08M06 | Nut | 90201-17682 | Washer Plate |
| 6E7-45560-01 | Forward Gear1(27T) | 93306-00501 | Bearing |
| 6E7-45571-00 | Reverse Gear2(27T) | 93210-57M09 | O-Ring |
| 933332-00005 | Bearing | 93210-56M08 | O-Ring |
| 664-45567-01 | Shim(T:0.1Mm) | 93315-317U2 | Bearing |
| 682-45631-00 | Clutch Dog | 93101-17001 | Oil Seal |
| 90250-05010 | Pin Straight | 683-45361-02-4D | Cap Lower Casing |
| 648-45633-00 | Ring Cross Pin | 6E8-45311-01-4D | Casing Lower |
| 97575-08535 | Bolt With Washer | 626-44365-01 | Damper Water Seal |
| 90201-10M01 | Washer Plate | 682-44361-01 | Tube Water1- LONG |
| 90171-10M01 | Nut Castle | 6B4-45251-00 | Anode |
| 683-45945-00 | Propeller 9 1/4X9 | 95895-06020 | Bolt Flange |
| 91490-30020 | Pin Cotter | 6E7-45987-01 | Spacer1 |
←
